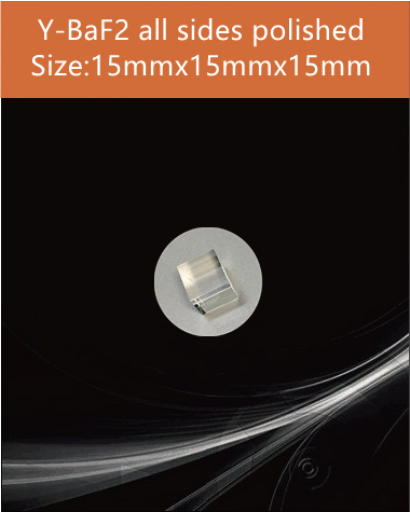

Y-BaF2 crystal, Yttrium doped Barium Fluoride scintillator, Y-BaF2 Yttrium doped Barium Fluoride Scintillation crystal Material ,15x15x15mm

Y-BaF2 crystal, Yttrium doped Barium Fluoride scintillator, Y-BaF2 Yttrium doped Barium Fluoride Scintillation crystal Material ,15x15x15mm

Brand :EPIC Crystal
Product Code :15x15x15mm all sides polished
Availability :In Stock
  • $510.00

  • Ex Tax :$510.00

Y-BaF2 Crystal Specification

  1. Dimension:15x15x15mm
  2. Polish: all sides polished
  3. Tolerance: ±0.1 mm

Y-BaF2 Crystal Features

    1. Relatively high light output
    2. High shock resistance
    3. Inert
    4. Maximum size: ø60 mm x 120 mm
    5. Available items: Y-BaF2, Y-BaF2 Screen

              Y-BaF2 Crystal Main Applications

              1. P-Detector
              2. Radioactivity medical science diagnoses

              Y-BaF2 Crystal Description

              Yttrium doped Barium fluoride ( Y-BaF2 ) is light scintillators which are used for detection of charged particles and soft gamma ray up to several hundreds keV. BaF2  crystal is typically used for detection of beta rays due to its relatively small back scattering. It is not suitable for detection of high-energy gamma ray because has a small photo fraction. It is non hygroscopic and is relatively chemically inert.

              Customized Y-BaF2 Scintillation Crystal

              Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.

              For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
