LaBr3 Scintillation Detector

LaBr3 scintillation detector is a hermetically sealed assembly which includes a high resolution diameter 2 inch x 2 inch length LaBr3 crystal, a diameter 2 inch photomultiplier tube, an internal magnetic light shield, an aluminum housing and a 14 pin connector.

LaBr3 Scintillation Detector Specifications

1. Scintillation crystal: LaBr3 diameter 2 inch x 2 inch
2. PMT: Beijing Hamamatsu diameter 2 inch CR173

3. Energy resolution: ≤ 3.5% at Cs137
4. Temperature range: -20 ℃ to +65 ℃
5. Typical high voltage: 400V-1100V

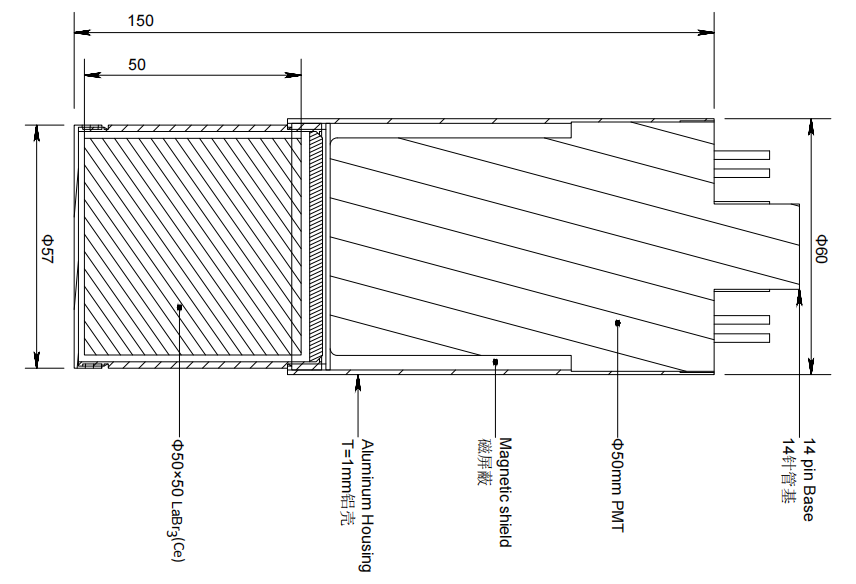

Drawing
