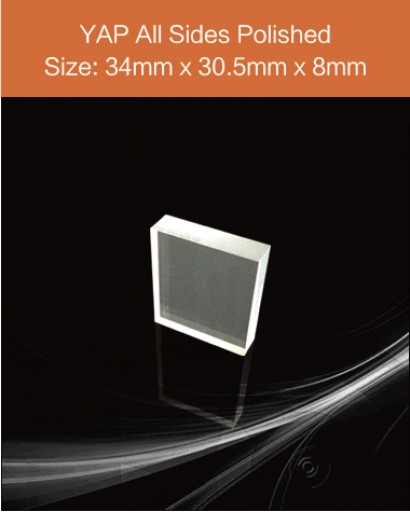

YAP Ce Crystal Specification

1. Dimension: 30.5 mm (length) x 34 mm (width) x 8 mm (thickness)

2. Polish: all sides polished

3. Tolerance: ±0.02 mm


YAP Ce Crystal Features

1. Relatively high light output

2. Ce concentration 0.5at%
3. Maximum size: ø50 mm x 200 mm

4. Available items: Monolithic YAP Ce and YAP:Ce screen

YAP Ce Scintillator Description

Yttrium aluminum perovskite activated by cerium (YAP Ce scintillator) is a fast, mechanically strong and chemically resistant scintillation material. Mechanical properties enable precise machining and entrance windows can be made with a very thin aluminum layer deposited directly on the entrance surface of the crystal. YAP:Ce scintillators have very low energy secondary X-ray emissions which makes them desirable for imagining applications. YAP:Ce detectors are used for gamma and X-ray counting, electron microscopy, electron and X-ray imaging screens, and tomography systems.

Customized YAP Ce Scintillation Crystal

Besides the scintillation crystals growth furnace, we also own completed further process equipment, included line cutting, inner circle cutting, grinding and polished machine, and with our advanced technical capability, we are able to handle complicated and special design from clients, like the through hole, reflector coating, matrix design, and so on.

For more information please visit www.epic-crystal.com, or you could directly contact our sales [email protected]
